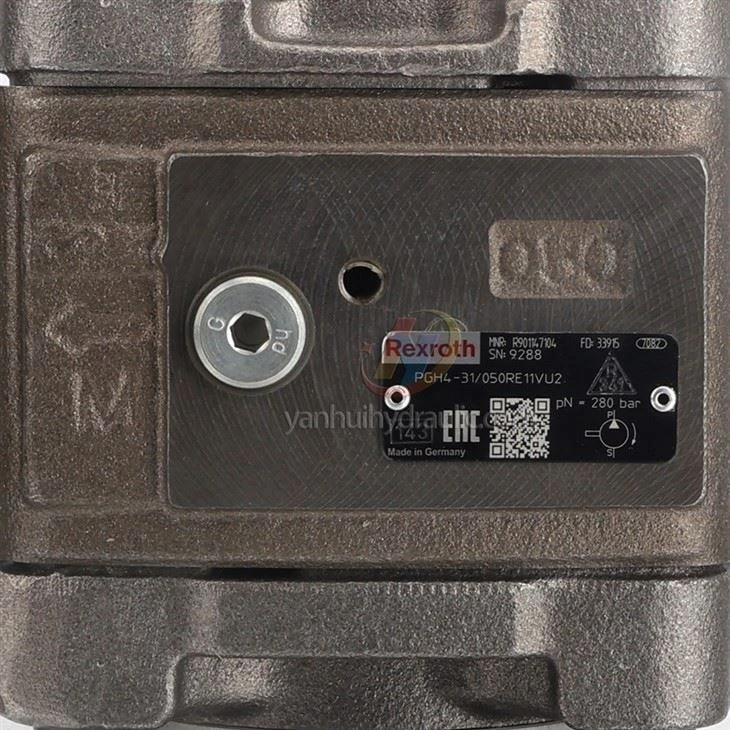

Bosch Rexroth Hydraulic Iav twj tso kua mis PGH4-3X/050RE11VU2
Product Description:Bosch Rexroth Hydraulic Iav Twj PGH4-3X/050RE11VU2 yog ib qho kev ua haujlwm siab ruaj khov hauv lub iav twj tso kua mis tsim los rau ntau daim ntawv thov. Nrog rau ntau yam ceev, lub twj tso kua mis no yog qhov zoo tagnrho rau kev ua haujlwm nrawm nrawm, muab qhov tshwj xeeb versatility. Nws cov qauv tsim muaj xws li radial thiab axial sib txawv siab them nyiaj, ua kom ntseeg tau thiab ua haujlwm tau zoo hauv ntau lub tshuab hydraulic.
Cov yam ntxwv tseem ceeb:
Tsau tshem tawm internal iav twj tso kua mis.
Dav ceev ntau yam, haum rau kev siv ceev sib txawv.
Radial thiab axial sib txawv siab them nyiaj rau kev txhim kho kev ntseeg tau.
Qhov loj dua qhov nruab nrog built-in gauge / ntshav chaw nres nkoj.
Saj zawg zog ua ke lub tswv yim nrog dhau-tsav rau seamless kev koom ua ke.
Cov chaw nres nkoj siab tsim los rau cov ntawv thov siab.
Internal iav twj tso kua mis nrog lub suab nrov khiav lag luam, tsawg kawg nkaus ntws pulsation, thiab kev ua haujlwm siab, txawm tias tsis tshua muaj kev sib hloov ceev thiab viscosity, ua tsaug rau kev sib khi qhov sib txawv.
Daim ntawv thov:
Haum rau qhov dav viscosity thiab ceev ntau yam.
Ncej Loj: 4, Nominal Loj: 20...50.
Max siab: 350 bar.
Khoom Series: 3X.
Specifications:
Max. Siab: 315 bar.
Kev nrawm nrawm: 200 - 3000 min⁻¹.
Fastening: 2- qhov mounting flange 101-2 raws li ISO 3019-1.
Max. Kev khiav hauj lwm: 150 l / min.
Hom Lub Npe: Rexroth.
Qauv: PGH4-3X/050RE11VU2.
Qhov hnyav: 17.56 kg.
Hydraulic Fluid: HLP, HEES, HFDU.
RFQ (Thov rau Quotation):Rau tus nqi, cov lus qhia ntxaws ntxaws, thiab muaj nyob ntawm Bosch Rexroth Hydraulic Gear Pump PGH4-3X/050RE11VU2, thov xa koj RFQ. Peb pab neeg mob siab rau yog npaj los pab koj sai.
Xaiv Bosch Rexroth rau precision engineering, xaiv Yanhui Hydraulic rau kev txhim khu kev qha hydraulic. Tiv tauj peb hnub no txhawm rau tshawb xyuas seb PGH4-3X/050RE11VU2 tuaj yeem ua tau raws li koj qhov kev xav tau hydraulic.
Bosch Rexroth Hydraulic Iav twj tso kua mis PGH4-3X/050RE11VU2
Specifications:
| Max. siab | 315bar ua |
| Ceev min. | 200 mins?¹ |
| Ceev max. | 3000 min?¹ |
| Fastening | 2- qhov mounting flange 101-2 raws li ISO 3019-1 |
| Max. ntws | 150 l / min |
| Hom | Rexroth |
| Qauv | PGH4-3X/050RE11VU2 |
| Qhov hnyav | 17.56 Kg |
| Hydraulic kua | HLP, HEES, HFDU |
