Guangdong Yanhui Hydraulic Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm vickers pvh74qic hloov pauv piston twj tso kua mis hauv Suav teb. Peb sov siab txais tos koj rau cov lag luam wholesale bulk vickers pvh74qic sib txawv piston twj tso kua mis rau muag ntawm no los ntawm peb lub hoobkas. Yog tias koj muaj lus nug txog pricelist thiab hais, thov koj xav email rau peb.
Product Overview
▔▔

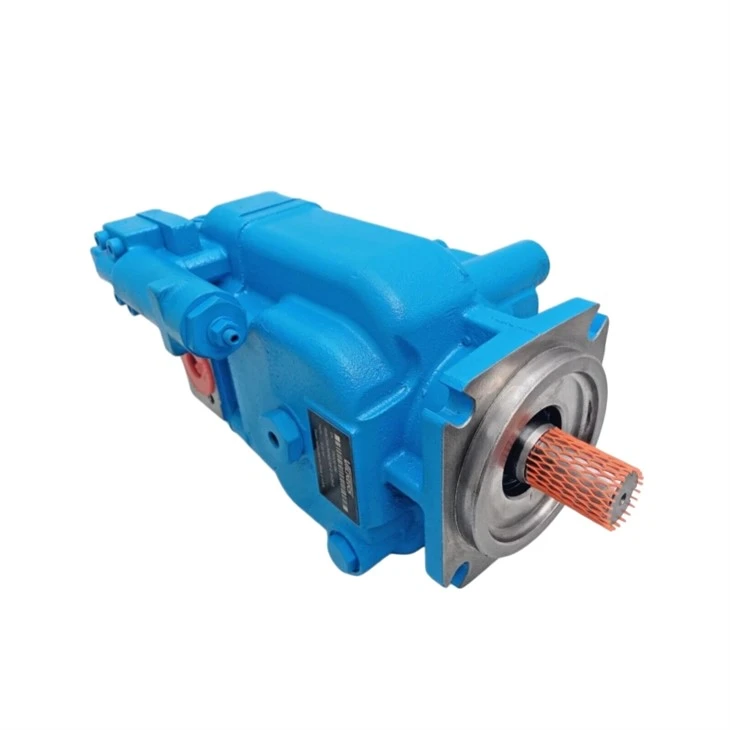

nws Vickers PVH74QIC Variable Piston Pump yog lub siab - hydraulic twj tso kua mis tsim los rau kev lag luam kev siv uas yuav tsum tau muaj meej khiav tswj, efficiency, thiab kev ntseeg tau. Paub txog nws cov qauv tsim thiab kev yoog raws, lub twj tso kua mis no muab kev ua haujlwm zoo hauv cov tshuab uas hloov pauv hloov pauv thiab lub siab sib xws yog qhov tseem ceeb.
Qhov Zoo Tshaj Plaws
▔▔
- Siab - muaj peev xwm siab txog 350 bar (5075 psi)
- Kev hloov pauv hloov pauv tau yooj yim rau kev tswj cov dej ntws
- Kev tsim kho ruaj khov nrog lub neej ua haujlwm ntev
- Compact tsim rau yooj yim installation
Technical Specifications
▔▔
| Parameter | Specification |
|---|---|
| Qauv | PVH 74 QIC |
| Hom twj tso kua mis | Hloov pauv hloov axial piston twj tso kua mis |
| Kev khiav tawm | ~73.7 cm³/rev (4.5 in³/v) |
| Hom Rated Flow @ 1800 rpm | ~ 125 L / min (33 US GPM) |
| Hom Rated Siab (C tswj) | 250 bar (3625 psi) |
| Qhib Circuit Design | Yog; qhib hydraulic Circuit Court |
| Mounting Flange | SAE "C" 4-bolt |
| Hom ncej | SAE "C" keyed los yog splined (vim los ntawm cov lus tom qab) |
| Kev sib hloov | R (clockwise) / L (CCW xaiv) |
| Kev thov qeb | Industrial & mobile hydraulics |
| Luj (kwv yees) | 99 lbs (45 kg) |
| Tswj kev xaiv | C (pressure compensator), IC (kev tswj hwm kev lag luam), lwm cov cai tswj |
Thovions
▔▔
- Cov cuab yeej siv txawb (excavators, loaders, cranes)
- Industrial presses thiab txhaj tshuaj molding tshuab
- Marine thiab offshore hydraulic systems
- Agricultural machinery ( tsheb laij teb, sau qoob)
- Hydraulic hwj chim units xav tau kev hloov pauv hloov pauv
Hais txogHomls
▔▔
- PVH 56 QIC
- PVH 90 QIC
- PVH 107 QIC
- PVH 130 QIC
Cov qauv no muaj qhov sib txawv ntawm qhov sib txawv ntawm qhov sib txawv nrog cov kev sib txawv thiab kev ntsuas siab, tso cai rau kev daws teeb meem raws li koj qhov kev xav tau.
FAQ
▔▔
1. Lub npe "PVH74QIC" txhais li cas?
"PVH" txheeb xyuas cov koob ua Vickers hloov pauv hloov axial piston twj tso kua mis. "74" yog hais txog qhov hloov pauv nominal (~ 74 cc/rev). "QI" txhais tau hais tias nyob ntsiag to muaj kev tsim qauv, thiab "C" qhia txog kev tswj hwm lub Hoobkas siab.
2. Hom kev tswj PVH74QIC siv li cas?
Tus qauv PVH74QIC suav nrog akev tswj lub siab compensatoruas tau hloov pauv hloov pauv kom tau raws li qhov system siab thiab ntws xav tau, txhim kho lub zog ua haujlwm thiab txo cov cua sov.
Tiv tauj peb
▔▔
Ua tsaug rau koj txaus siab rau Vickers PVH74QIC Variable Piston Pump. Yog tias koj muaj lus nug, xav tau nqe lus, xav tau kev txhawb nqa, lossis xav tau kev pab xaiv cov khoom siv hydraulic zoo rau koj lub cev, peb pab neeg ntawm Yanhui Hydraulic Co., Ltd. yog npaj los pab koj.
