Guangdong Yanhui Hydraulic Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm iph-2b-3.5-11 hydraulic roj twj tso kua mis servo iav twj hauv Suav teb. Peb sov siab txais tos koj rau cov lag luam wholesale bulk iph-2b-3.5-11 hydraulic roj twj tso kua mis servo iav twj tso kua mis rau muag ntawm no los ntawm peb lub hoobkas. Yog tias koj muaj lus nug txog pricelist thiab hais, thov koj xav email rau peb.
Product Overview

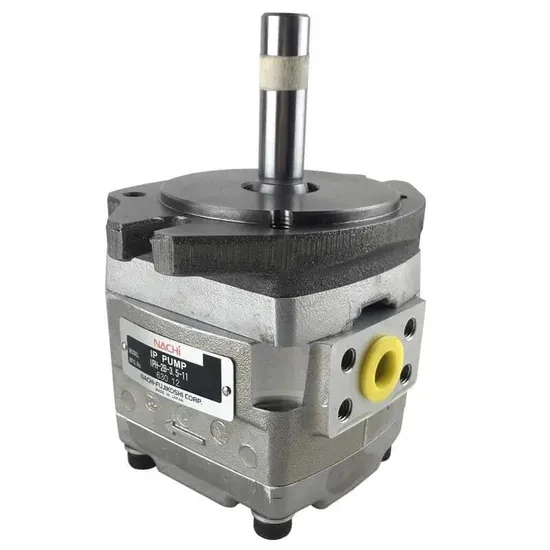

▔▔CovIPH-2B-3.5-11yog ib qho kev ua haujlwm siab -kev ua tau zoo, sab hauv iav hydraulic twj tso kua mis tshwj xeeb tsim los rau precision hydraulic zog tshuab, servo tswj tsav, thiab cov tshuab ua haujlwm. Kev sib xyaw ua ke ntawm kev tsim cov iav meshing nrog qis- cov yam ntxwv ntawm lub suab nrov ua haujlwm, lub twj tso kua mis no muaj kev tso tawm cov kua dej txhim khu kev qha thiab kev ua haujlwm siab volumetric txawm tias nyob rau hauv qhov xav tau siab - siab.
Qhov Zoo Tshaj Plaws
▔▔-
High Efficiency & Zog Txuag:Optimized internal gear geometry ho txo qis sab hauv to, boosting volumetric thiab mechanical efficiency thaum txo lub zog noj.
Ultra-Low Noise Level:Tsim los nrog kev hloov kho cov iav profile thiab cov hniav sib txuam kom ntseeg tau tias du, ntxhi - ua haujlwm ntsiag to thoob plaws txhua qhov siab.
Compact & Lightweight Design:Compact radial thiab axial qhov ntev tso cai rau kev sib koom ua ke yooj yim rau hauv cov khoom siv kaw ntom nti.
Siab -Kev muaj peev xwm siab:Cov txheej txheem zoo heev thiab cov qib siab - cov ntaub ntawv qib tso cai rau kev ua haujlwm tsis tu ncua ntawm kev ua haujlwm siab nrog qhov siab me me.
Servo System Compatibility:Cov lus teb zoo heev ua rau nws zoo heev rau cov niaj hnub dynamic servo-tsav hydraulic systems, sib txawv - tsav ceev, thiab lub zog- txuag cov cuab yeej.
-
Technical Specifications
▔▔| Qeb Parameter | Specification Paub meej | Chav tsev / Tus nqi |
| Qauv Tsim | IPH-2B-3.5-11 | IPH Series, Loj 2B |
| Hom twj tso kua mis | Internal Gear Hydraulic Twj | Servo Compatible |
| Nominal Displacement | 3.5 | cm3/rov (cc/rev) |
| Rated Siab | 21.0 | MPa (210 bar) |
| Siab siab tshaj plaws | 25.0 | MPa (250 bar) |
| Ceev Range | 600 - 3000 | RPM |
| Volumetric Efficiency | 93 feem pua los yog siab dua | Thaum ntsuas siab thiab ceev |
| Lub suab nrov | Hauv qab no 62 | dB(A) ntawm 1500 RPM, 14 MPa |
| Viscosity Range | 10 rau 300 | mm2/s (cSt) |
| Pom zoo dej Temp | -10 rau +70 | Qib Celsius |
| Yuav tsum tau lim | ISO 4406 18/16/13 (10 Micron) | Kev huv huv Standard |
| Mounting Flange Hom | SAE A 2-Bolt / Standard ISO Flange | Txheem Mounting |
| Hom ncej | Ncaj Keyed Ncej / Spline | Kev xaiv customization |
| Kwv yees qhov hnyav | 3.8 | kg |
Daim ntawv thov
▔▔| Kev lag luam / Daim Ntawv Thov | Kev siv tseem ceeb | Functional Benefits |
| Yas Txhaj Molding | Hydraulic clamping thiab txhaj tshuaj servo tsav | Muab kev tswj xyuas meej, tsis muaj suab nrov, thiab txog li 50 feem pua lub zog txuag hauv servo teeb |
| Hlau txoj kev & Presses | Hydraulic xovxwm tshuab, punch presses, dabtsi yog khoov tshuab | Ua kom ruaj khov siab nrog lub siab tsis tshua muaj ripple rau kev ua haujlwm zoo ib yam |
| CNC tshuab cuab yeej | Workpiece clamping, cuab yeej hloov, thiab headstock lubrication | Tsis tshua muaj kev vibration ua kom siab precision hauv rhiab hlau txiav thiab milling ua haujlwm |
| Muaj Automation | Hydraulic hwj chim units (HPUs) thiab automated ntau lawm kab | Compact footprint tso cai yooj yim mounting rau niaj hnub modular machinery sib dhos |
| Tuag Casting Machine | Pab hydraulic zog thiab cov tub ntxhais rub mechanisms | High thermal kam rau ua thiab kev tsim kho ruaj khov ua haujlwm hnyav ua haujlwm tsis tu ncua |
Yam qauv
▔▔| Qauv nab npawb | Kev hloov pauv (cc/rev) | Rated Siab (MPa) | Max siab (MPa) | Ceev Range (RPM) |
| IPH-2B-2.0-11 | 2.0 | 21.0 | 25.0 | 600 - 3000 |
| IPH-2B-2.5-11 | 2.5 | 21.0 | 25.0 | 600 - 3000 |
| IPH-2B-3.5-11 | 3.5 | 21.0 | 25.0 | 600 - 3000 |
| IPH-2B-5.0-11 | 5.0 | 21.0 | 25.0 | 600 - 3000 |
| IPH-2B-6.5-11 | 6.5 | 21.0 | 25.0 | 600 - 3000 |
| IPH-2B-8.0-11 | 8.0 | 16.0 | 21.0 | 600 - 3000 |
| IPH-3B-10-11 | 10.2 | 21.0 | 25.0 | 500 - 2800 |
| IPH-3B-13-11 | 13.3 | 21.0 | 25.0 | 500 - 2800 |
| IPH-3B-16-11 | 15.8 | 21.0 | 25.0 | 500 - 2800 |
FAQ
▔▔Nqe Lus Nug 1: Hom roj hydraulic twg pom zoo rau IPH-2B-3.5-11 twj tso kua mis?
Teb:Kev tiv thaiv -coj roj av- raws li cov roj hydraulic (ISO VG 32, VG 46, lossis VG 68 nyob ntawm qhov chaw ua haujlwm kub) raug pom zoo. Synthetic los yog hluav taws kub- cov kua resistant kuj tseem yuav siv tau, yog tias cov ntsaws ruaj ruaj thiab cov kev kam rau sab hauv yog sib phim raws li.
Nqe Lus Nug 2: Puas yog IPH-2B-3.5-11 lub twj tso kua mis tuaj yeem siv rau hauv qhov sib txawv-ceev servo lub cev muaj zog?
Teb:Yog lawm, IPH-2B-3.5-11 twj tso kua mis yog tsim tshwj xeeb rau servo tsav compatibility. Nws muaj kev sib hloov qis inertia, kev ua haujlwm qis qis qis mus txog 600 RPM, thiab cov lus teb siab ntim, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev txuag hluav taws xob servo hydraulic zog.
Tiv tauj peb
▔▔Thov ib daim Quote Hnub nokom ntseeg tau tias koj lub kaw lus hydraulic ua tau zoo tshaj plaws nrog cov khoom zoo los ntawm Yanhui Hydraulic.
