Guangdong Yanhui Hydraulic Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm parker d91fpe hauv Suav teb. Peb sov siab txais tos koj rau cov lag luam wholesale bulk parker d91fpe muag ntawm no los ntawm peb lub hoobkas. Yog tias koj muaj lus nug txog pricelist thiab hais, thov koj xav email rau peb.
Product Overview
▔▔

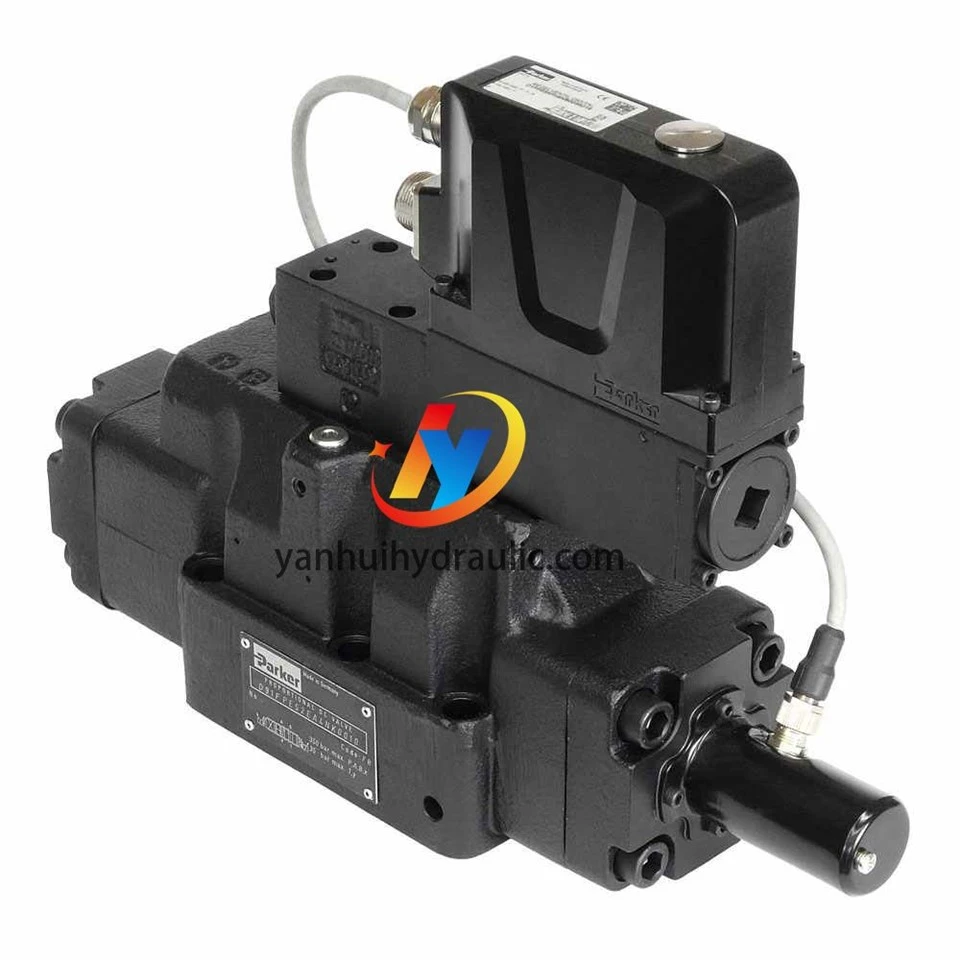

Parker D91FPE proportional directional control valve yog tsim los rau hydraulic systems uas yuav tsum tau muaj tseeb txaus thiab siab tswj. Nws yog dav siv nyob rau hauv industrial machinery, automation khoom, txhaj tshuaj molding tshuab, steel nroj tsuag, thiab hnyav- cov khoom siv mobile.
Qhov Tseem Ceeb Zoo
▔▔
- Qhov siab tshaj plaws dynamics - lub sij hawm luv luv lub voj voog thiab yog li siab dua lub tshuab tso zis
- Muaj peev xwm txaus siab - qhov ua tau zoo tshaj plaws hauv kev cuam tshuam rau qhov loj ntawm lub valve
- Siab - daws teeb meem txoj hauj lwm tawm tswv yim ntawm lub ntsiab spool - kom ruaj khov spool txoj hauj lwm
- Progressive lub ntsiab spool tsim (sinus yam ntxwv) - siab - daws teeb meem txoj hauj lwm tswj ntawm me me cov cim qhia thiab rau siab ntws qhov twg ntshaw
- Txhais qhov chaw ntawm lub hwj chim-down - yeem P-A/B-T lossis P-B/A-T lossis qhov chaw nruab nrab (rau qhov sib tshooj)
- Cov tshuab hluav taws xob digital - tso cai rau khaws thiab thauj cov ntaub ntawv valve
- Optionally nrog EtherCAT interface, 2x M12x1, connector 4-Pin (Ether-CAT Nyob rau hauv thiab EtherCAT Tawm) - siab dynamics kuj yuav siv tau nyob rau hauv lub fieldbus system
- Lub valve tsim muaj zog heev - tus nqi qis dua los ntawm kev poob qis
- Lub sij hawm xa tuaj luv - tsis tas yuav tsum muaj chaw cia khoom
Technical Specifications
▔▔
| Flow Rate: | 450 L / min |
| Khoom Series: | Proportional DC Valve |
| Chaw nres nkoj txuas: | NG25/CETOP 08 |
| Maximum Flow Rate: | 1000 L / min |
| Chaw nres nkoj txuas: | NG10 / CETOP 05, NG16 / CETOP 07, NG25 / CETOP 08, NG32 / CETOP 10 |
| Hom kev ua haujlwm: | Pilot |
| Spool Code: | E52 |
| Electronics Hom: | Onboard Electronics |
| Siab sib txawv (bar): | 5 |
| Spool Hom: | Zerolap |
| Maximum Flow Rate: | 1000L / min |
| Mounting txoj hauj lwm: | Kab rov tav mounting nyiam |
| Flow Rate: | 450.0 L / min |
| Siab sib txawv: | 5.0bar ib |
| Defined Spool Position Thaum Lub Hwj Chim Down: | P-A/B-T |
| Mounting Hom: | Subplate Mounting |
| Pilot Inlet / Drain Qhov Chaw: | Sab hauv / sab nraud |
| Khoom siv foob: | NBR |
| Hom kev ua haujlwm: | VCD®{0}}actuator |
| Lub teeb liab nkag: | 0-±10 V |
| Rau hom kua dej: | Hydraulic Roj raws li DIN 51524 ... 535 |
| Muaj nuj nqi: | Proportional, 3-txoj kev |
| Flow Direction: | 0-10 V = P-A |
| Kev khiav hauj lwm siab tshaj plaws: | 350bar ua |
| Hom kev sib txuas: | 6+PE + pab |
| Valve Option: | Standard thiab regenerative valve muaj nuj nqi |
| Maximum Ambient Kub: | 60 degree |
| Yam tsawg kawg nkaus ambient kub: | -20 degree |
| Maximum Fluid Temperature: | 60 degree |
| Yam tsawg kawg ntawm cov kua dej kub: | -20 degree |
| Maximum Kinematic Viscosity: | 4 00 csy |
| Yam tsawg kawg Kinematic Viscosity: | 20 csy |
| Filter Efficiency Rating: | ISO 4406; 18/16/13 |
| Leak Rate: | Nyob ntawm Spool |
| Khoom siv foob: | NBR |
| Mounting Style: | DIN 24340 / ISO 4401 / CETOP RP121 / NFPA |
| Lub sij hawm teb: | 19ms ib |
| Hysteresis: | < 0.1 % |
| Ingress Protection Rating: | IP65 raws li EN 60529 |
| Lub zog hluav taws xob: | 24 VDC nominal ( kam rau ua ntau yam 22 … 30), hluav taws xob kaw - tawm ntawm <19, ripple < 5 % eff., surge free |
| Vibration Resistance: | 10 Sinus 5...2000 Hz acc. IEC 60068-2-6 10 (RMS) Random suab nrov 20...2000 Hz acc. IEC 60068-2-6415 Kev poob siab acc. IEC 60068-2-27 g |
| Khoom siv lub cev: | Cast Iron |
| Qhov hnyav: | 23.5 kg ib |
| Daim ntawv thov: | Industrial Hydraulic |
| Hom Tshuaj: | Parker |
| Technology: | Hydraulic |
| Division: | Industrial Systems Division Europe |
| Valve Hom: | Proportional DC Valve |
| Media: | Hydraulic Roj |
| Maximum Pilot Pressure: | 350bar ua |
| Yam tsawg kawg Pilot Pressure: | 20 bar |
| Variation ntawm Opening Point: | teem rau 10% hais kom ua teeb liab |
Thovions
▔▔
- General presses
- Tuag cast
- Txhaj tshuaj molding
- Pulp & ntawv
Hais txogHomls
▔▔
- D31FP NG10 (CETOP 05)
- D41FP NG16 (CETOP 07)
- D91FP NG25 (CETOP 08) rau qhov chaw nres nkoj txoj kab uas hla mus txog 32 hli
- D111FP NG32 (CETOP 10)
FAQ
▔▔
Parker D91FPE siv rau dab tsi?
Parker D91FPE feem ntau yog siv rau proportional hydraulic flow thiab directional control nyob rau hauv industrial hydraulic systems.
Puas yog Parker D91FPE haum rau siab -siab tshuab?
Yog lawm. Ntau tus qauv D91FPE tuaj yeem ua haujlwm ntawm qhov siab txog 350 bar, ua rau lawv tsim nyog rau kev thov kev lag luam.
Tiv tauj peb
▔▔
Thov ib daim Quote Hnub nokom ntseeg tau tias koj lub kaw lus hydraulic ua tau zoo tshaj plaws nrog cov khoom zoo los ntawm Yanhui Hydraulic.
Cim npe nrov: Parker d91fpe, Tuam Tshoj parker d91fpe lwm tus neeg
