Guangdong Yanhui Hydraulic Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm vickers dg4v series solenoid ua 4 txoj kev hydraulic valve hauv Suav teb. Peb sov siab txais tos koj rau cov lag luam wholesale bulk vickers dg4v series solenoid ua 4 txoj kev hydraulic valve rau muag ntawm no los ntawm peb lub hoobkas. Yog tias koj muaj lus nug txog pricelist thiab hais, thov koj xav email rau peb.
Product Overview

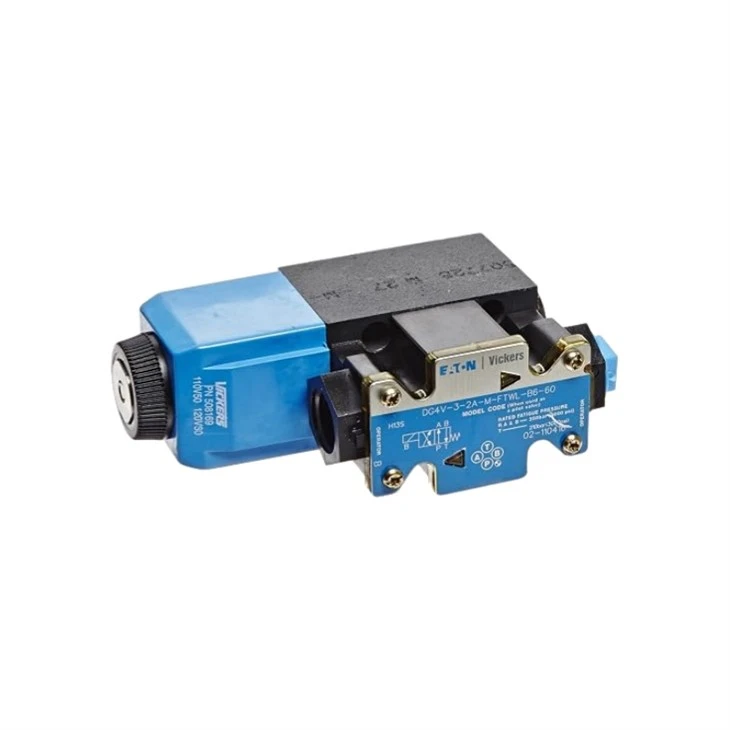

▔▔CovVickers DG4V Seriessawv cev rau kev lag luam tus qauv rau siab -kev ua tau zoo, solenoid- ua haujlwm, ncaj qha - ua 4-txoj kev tswj cov li qub. Tsim los ntawm Eaton Vickers, cov li qub no tau tsim los tswj thiab nres ntws ntawm txhua qhov chaw hauv hydraulic system, muab kev ntseeg siab tsis sib haum thiab kev ua haujlwm zoo hauv kev xav tau kev lag luam thiab kev siv mobile.
Qhov Zoo Tshaj Plaws
▔▔-
High Flow & Pressure Capability:Muab qhov tshwj xeeb txaus txaus mus txog 80 L / min (21 USgpm) thiab kev khiav hauj lwm siab txog li 350 bar (5075 psi), optimizing system zog ceev.
Tsis tshua muaj siab poob:Advanced internal flow channel tsim kom txo qis kev poob siab, txo cov hluav taws kub thiab siv zog.
Kev qaug zog-Resistant Solenoids:Nta ntub dej -armature AC lossis DC solenoids nrog cov coils hloov tau yooj yim, ua kom lub sijhawm teb sai, ua haujlwm ntsiag to, thiab lub neej ua haujlwm ntev heev.
Versatile Spool Configurations:Muaj nyob rau hauv ntau hom spool (xws li, kaw qhov chaw, qhib chaw, ntab, tandem) kom seamlessly phim txhua yam hydraulic Circuit Court yuav tsum tau.
Robust & Weatherproof:Engineered nrog phau ntawv overrides raws li tus qauv, thiab IP65 / ISO 4400 (DIN connector) hluav taws xob sib txuas rau kev lag luam txhim khu kev qha hauv qhov chaw hnyav.
-
Technical Specifications
▔▔| Parameter / Specification | DG4V-3 (Standard Performance) | DG4V-3S (Kev ua haujlwm siab) |
| Interface Standard | ISO 4401-03, NFPA D03, CETOP 3 | ISO 4401-03, NFPA D03, CETOP 3 |
| Max. Kev khiav hauj lwm siab (Ports P, A, B) | 350 bar (5075 psi) | 350 bar (5075 psi) |
| Max. Tank Chaw nres nkoj siab (Port T) | 210 bar (3045 psi) - DC / 160 bar - AC | 210 bar (3045 psi) - DC / 160 bar - AC |
| Max. Tus nqi ntws | Txog li 80 L / min (21 USgpm) | Txog li 40 L / min (10.5 USgpm) |
| Fluid Temperature Range | -20℃rau +70℃(-4℃F txog +158℃F) | -20℃rau +70℃(-4℃F txog +158℃F) |
| Viscosity Range | 2.8 txog 500 cSt (32 rau 2300 SUS) | 2.8 txog 500 cSt (32 rau 2300 SUS) |
| Pom zoo lim | ISO 4406 Chav Kawm 20/18/15 lossis zoo dua | ISO 4406 Chav Kawm 20/18/15 lossis zoo dua |
| Solenoid Voltage Options | 12V DC, 24V DC, 110V AC, 120V AC, 220V AC, 240V AC | 12V DC, 24V DC, 110V AC, 120V AC, 220V AC, 240V AC |
| Chav kawm tiv thaiv | IP65 (nrog cov ntsaws ruaj ruaj) | IP65 (nrog cov ntsaws ruaj ruaj) |
Daim ntawv thov
▔▔| Daim ntawv thov teb | Tshuab / System | Lub luag haujlwm tseem ceeb ntawm DG4V Valve |
| Kev tsim khoom lag luam | Yas Txhaj Moulding Tshuab | Tswj clamping, txhaj tshuaj, thiab ejector lub tog raj kheej txav nrog lub sijhawm meej. |
| Hlau & Nias | Hydraulic nias & shearing tshuab | Tswj lub siab -siab ram qhovntsej thiaj tsis mob, tuav, thiab rov thim rov qab sai. |
| Txawb & Cov Khoom Siv Tsim Kho | Aerial Ua Haujlwm Platforms & Cranes | Directs kua rau outriggers thiab boom nqa lub tog raj kheej, kom ntseeg tau tias kev ua haujlwm du thiab nyab xeeb. |
| Marine & Offshore | Winches & Deck Machinery | Tsav hydraulic motors rau thauj tog rau nkoj tuav thiab cargo winches nyob rau hauv corrosive maritime ib puag ncig. |
| Lub zog tiam | Turbine Governor Systems & Cua Turbines | Regulates auxiliary hydraulic ua xws li hniav pitch tswj thiab kev ruaj ntseg braking systems. |
Yam qauv
▔▔| Qauv Code Segment | Options / Indicators | Kev piav qhia |
| DG4V-3 (S) | Base Model Designation | Directional Valve, Gasket mounted, Solenoid ua haujlwm, 4-txoj kev, 3 qhov loj (los yog 3S kev ua haujlwm siab) |
| Spool Hom | 0, 2, 6, 7, 8, 22, 33 (eg, DG4V-3-2C) | 0: Qhib chaw;2: Kaw qhov chaw;6: Float Center;8: Tandem chaw |
| Lub Caij Nplooj Hlav Caij Nplooj Hlav | A, B, C, F, N | A: Caij nplooj ntoos hlav offset;B: Caij nplooj ntoos hlav centered (1 solenoid);C: Caij nplooj ntoos hlav centered (2 solenoids);F: Raug ntes |
| Hom Solenoid | W, WB, WB | W: ntub armature (DIN connector kev twb kev txuas style) |
| Voltage Code | G, H, B, D | GDC: 12V;HLub hwj chim: 24V DC;B110V AC 50Hz / 120V AC 60Hz;D220V AC 50Hz / 240V AC 60Hz |
| Tus lej tsim | 60, 61, 62 | Yam yuav hloov. Tus qauv tso tawm tam sim no yog 60 series. |
FAQ
▔▔Q1: Dab tsi yog qhov txawv ntawm DG4V-3 thiab DG4V-3S?
A:CovDG4V-3yog tus qauv version optimized rau siab txaus muaj peev xwm (txog 80 L / min), whereas lubDG4V-3Syog qhov siab -kev ua tau zoo / solenoid- ua haujlwm tau zoo tsim los rau cov qauv kev ua haujlwm thiab qis qis tshaj plaws (txog 40 L / min), muab kev siv hluav taws xob qis dua thiab cov nqi kho kom zoo- kev ua tau zoo.
Q2: Kuv puas tuaj yeem hloov AC solenoid kauj nrog DC solenoid kauj ntawm tib lub valve?
A:Tsis yog, koj tsis tuaj yeem pauv AC thiab DC coils ntawm tib lub raj armature. Lub cev loj, coil tsis kam, thiab armature stroke configurations txawv ntawm AC thiab DC versions. Txhawm rau hloov hom hluav taws xob, koj feem ntau yuav tsum tau hloov tag nrho cov solenoid raj / coil sib dhos uas tau teev tseg rau qhov voltage, lossis xaj kom haum cov qauv valve.
Tiv tauj peb
▔▔
Thov ib daim Quote Hnub nokom ntseeg tau tias koj lub kaw lus hydraulic ua tau zoo tshaj plaws nrog cov khoom zoo los ntawm Yanhui Hydraulic.
